F150 Stage 2 Race Fuel System 1050X Package

Return style fuel system, 2015+ Ford F150 Truck SNOW Fuel Hat with pumps capable of 1600 rwhp on E85. This option is for the race/street build. Note this option does utilize a hobbs switch and 2 pumps run all the time, third pump is triggered with the hobbs switch at 4 psi.

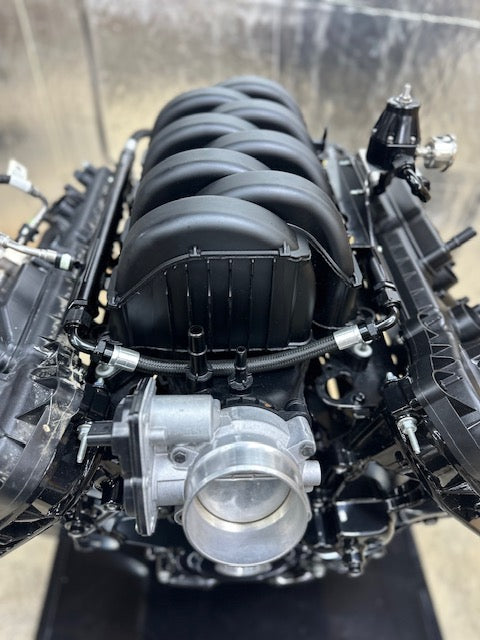

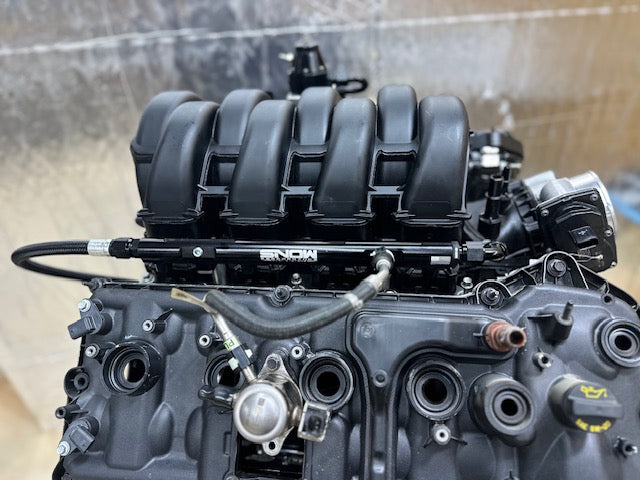

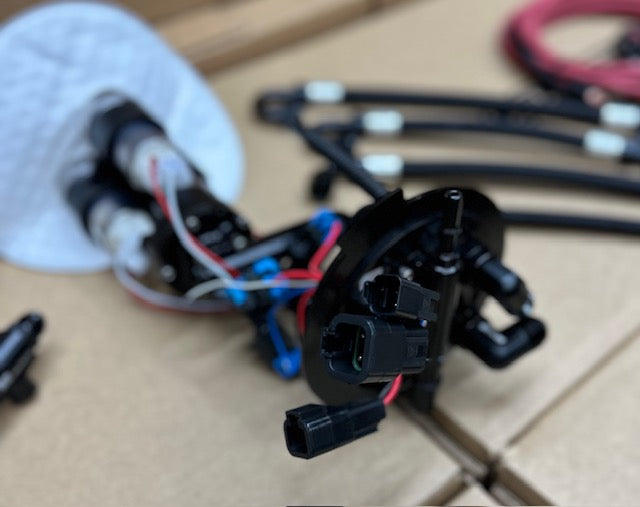

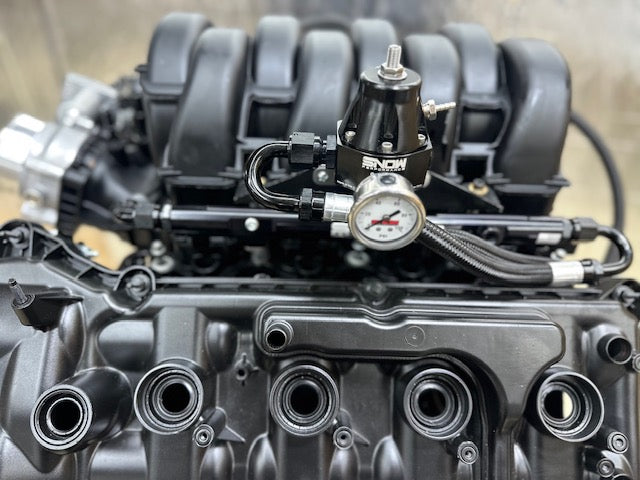

What is included- 2015+ Ford F150 Truck SNOW Fuel Hat with Three  [525] pumps. You will be required to use a factory level sensor. SNOW Fuel Rail Kit, F150 Coyote (Pair) Return Style (1) Snow Performance’s High Flow Billet Fuel Pressure Regulators (1) Snow 0-100 PSI Fuel Pressure Gauge (1/8 NPT) 30 Micron Filter (-10 ORB Inlet/ Outlet) w/billet mount All electrical lines/connections, a 150A Circuit Breaker, 4 Four Channel Relay module that combines four, individually fused, 40 amp relay circuits into an attractive and easy-to-install package. One relay dedicated per pump and additional relay for additional features such as a transmission cooler fan. Fuel line set includes -8 PTFE feed hose, -8 PTFE cross over and -6 PTFE return hose made to length using machine crimped fittings to create a secure and leak-proof connection between PTFE hoses and fittings (1) pressure regulator mounting brackets (made to fit on factory intake manifold, may require modification if using with aftermarket intake). This is a true plug n play system, all electrical components tie into factory connectors, and all fuel lines are made to length. In depth instructions included for easy installation- this is a true plug n play system, all electrical components tie into factory connectors and all fuel lines are made to length. In depth instructions included for an easy installation.

Set of (8) injector dynamics ID1050X are included in this package.

Fuel system plumbing is made to work with factory or factory style intake. If you are installing on a Whipple application, shipping will be delayed by 2-4 weeks due to parts availability. Note the whipple application does not include fuel rails. Please email us with questions.
