F150 Stage 3 Extreme Fuel System 1750X package
Return style fuel system, 2015+ Ford F150 Truck SNOW Fuel Hat with pumps capable of 1900 rwhp on E85. This option is for the extreme build that will get all the fuel! Note this option does not utilize a hobbs switch and all 3 pumps run all the time. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time!) If all 3 pumps are not running at the same time, you will see pressure issues as it will backfeed through the remaining unpowered pump/s. It is recommended to keep at minimum a half of a tank of fuel as to not over heat the fuel or scavenge.

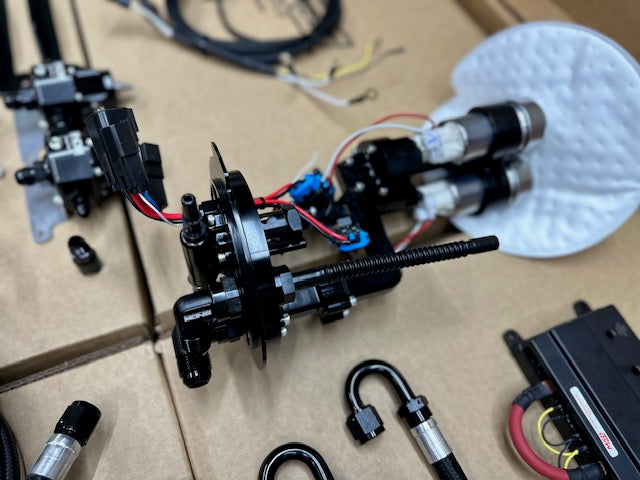

What is included- 2015+ Ford F150 Truck SNOW Fuel Hat with Three 490lph [535] pumps. You will be required to use a factory level sensor. SNOW Fuel Rail Kit, F150 Coyote (Pair) Return Style (2) Snow Performance’s High Flow Billet Fuel Pressure Regulators (2) Snow 0-100 PSI Fuel Pressure Gauge (1/8 NPT) 30 Micron Filter (-10 ORB Inlet/ Outlet) w/billet mount All electrical lines/connections, a 150A Circuit Breaker, 4 Four Channel Relay module that combines four, individually fused, 40 amp relay circuits into an attractive and easy-to-install package. One relay dedicated per pump and additional relay for add ons such as a transmission cooler fan. Fuel line set includes -10 PTFE feed hose, -8 PTFE cross over and return hoses made to length using machine crimped fittings to create a secure and leak-proof connection between PTFE hoses and fittings (2) pressure regulator mounting brackets (made to fit on factory intake manifold, may require modification if using with aftermarket intake). This is a true plug n play system, all electrical components tie into factory connectors and all fuel lines are made to length. In depth instructions included for an easy installation.

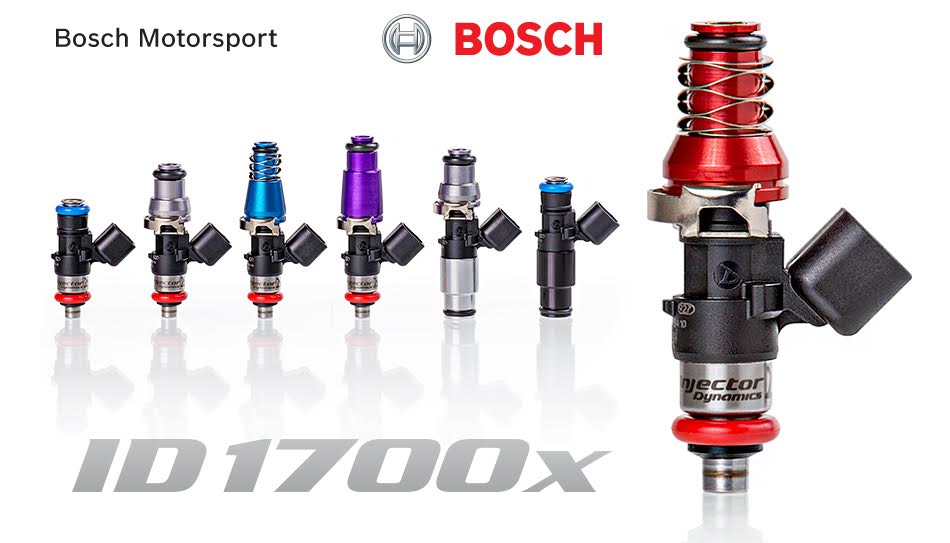

This fuel system package includes a set of injector dynamics ID1750X.
Fuel system plumbing is made to work with factory or factory style intake. If you are installing on a Whipple application, shipping will be delayed by 2-4 weeks due to parts availability. Note the whipple application does not include fuel rails. Please email us with questions.
