TRU Street F150 5.0 Coyote Twin Turbo Kit – Custom Build (2015+)
Build an F150 twin turbo kit to your exact spec. The Tru Street custom kit for the 2015+ F150 5.0 Coyote lets you choose the turbos, fuel system, injectors and tune, and we supply every last nut and bolt to match. Starts at $12,999.
Fitment: 2015+ Ford F150 5.0L Coyote. 2018-2020 trucks get a battery mounting bracket and tray; 2021+ trucks get the required AC line.
Highlights:
- Made in the USA. Stainless tubular manifolds and piping are built by Kooks Headers in Statesville, NC
- 304 stainless hot side, with manifolds made from 1-5/8" CNC mandrel-bent tubing
- Shearer Fabrication 5.5" intercooler with BOV flange, plus 3" and 3.5" stainless intercooler piping
- 3" stainless downpipes, with a third O2 bung in the driver-side pipe
- Pre-made -4AN feed and -10AN drain oil lines with crimped fittings
- Fuel system and injector options
Warranty: Limited lifetime warranty on manifolds and piping.
Installation: Professional install is available by appointment at our Franklinton, NC shop. Call (919) 355-5524 to book. We also ship nationwide.
Financing: Split the cost with Shop Pay Installments at checkout (subject to eligibility).
FAQ
What is the difference from the turn-key kit? The turn-key kit ($15,399) includes fueling, injectors and the Shoemaker tune. The custom kit lets you choose those parts yourself or reuse ones you already have.
Related: F150 fuel systems · HPT turbos · Oil feed and return line kit · All F150 performance parts
Full kit contents:

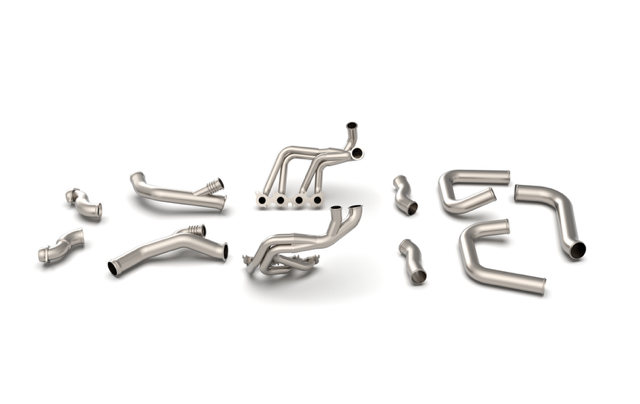

- Stainless steel tubular manifolds manufactured by Kooks
- manifold bolt sets
- manifold gaskets
- Stainless steel 3" downpipes with O2 bungs and a third O2 bung in drivers side pipe for additional options
- Stainless Steel Downpipe connection pipe Stepped 3-2.5” that bolts directly to factory exhaust (Y pipe is optional)
- HPT turbos (multiple sizes options to choose from)
- turbo support brackets
- Set of Turbo blankets
- -10AN turbo drain flanges
- Turbo oil drain lines made to length with -10AN with crimped fittings
- Turbo oil feed lines made to length with -4AN with crimped fittings
- All oil feed and return line fittings as well as bulkhead -10AN fitting for oil pan return
- Shearer Fabrication 5.5" intercooler with BOV flange installed
- intercooler mounting brackets and hardware
- 3" stainless steel intercooler piping from turbos to intercooler
- 3.5" stainless steel intercooler charge pipe to throttle body
- All silicone couplers in black that are needed for cold side piping
- Stainless steel T-bolt clamps for all cold side couplers
- Air filters
- O2 extension harness sets
- Spark Plugs
- Fuel system options
- Injector options
- Map Sensor
- All hose extensions and connections for vacuum lines as well as coolant lines
- Battery mounting bracket and tray for 18-20 F150
- AC line if truck is a 21+ model
- 1 case of HPL 5W50 oil
- Motorcraft oil filter
