TRU Street F150 5.0 Stage 2 Street Fuel System + ID1050X Injector Package – 1500 RWHP E85

The Tru Street F150 Stage 2 Street Fuel System ID1050X Package is a return-style, triple-pump E85 fuel system for the 2015+ F150 5.0 Coyote, rated to support 1500 rwhp on E85. All electrical connections tie into factory connectors and every fuel line is made to length.

This package adds a set of (8) Injector Dynamics ID1050X injectors and saves you $100. Check with your tuner that this package supports your power goals.

Fitment: 2015+ Ford F150 with the 5.0L Coyote V8 (return-style conversion of the factory system). Built for factory or factory-style intakes; Whipple applications ship without fuel rails and may take 2-4 extra weeks.

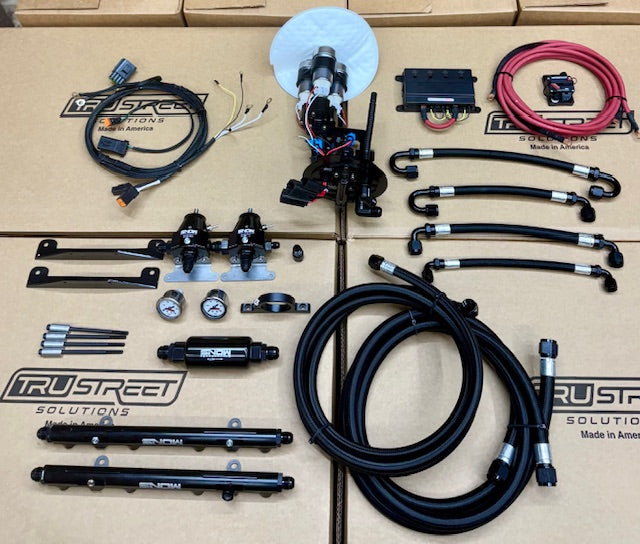

What's included:

• Pump setup: one 450 lph and two 470 lph pumps; two pumps run full time and the third is triggered by a Hobbs switch at 4 psi
• SNOW Performance F150 fuel hat (uses your factory level sensor)
• SNOW return-style F150 Coyote fuel rail kit (pair; not included on Whipple applications)
• (1) SNOW high-flow billet fuel pressure regulator and (1) 0-100 PSI gauge, with regulator brackets for the factory intake
• 30 micron filter (-10 ORB) with billet mount
• Plug-and-play wiring: 150A circuit breaker and 4-channel relay module (one fused 40A relay per pump, plus one for extras such as a transmission cooler fan)
• Made-to-length machine-crimped lines: -8 feed, -8 crossover and -6 return
• In-depth installation instructions
• (8) Injector Dynamics ID1050X injectors

Installation: Professional install is available by appointment at our Franklinton, NC shop. Call (919) 355-5524 to book. We also ship nationwide.

Financing: Split the cost with Shop Pay Installments at checkout (subject to eligibility).

FAQ

Will this fuel system support E85? Yes. It is rated for 1500 rwhp on E85.

Is it plug and play? Yes. The wiring ties into factory connectors and the lines are pre-made, though the regulator brackets may need modification with an aftermarket intake manifold.
